CDiagramEditor Class Reference

CDiagramEditor is a dialog for editing or creating chords. More...

#include <diagram-editor.hh>

List of all members.

Public Slots
void	setChord (CChord *chord)

Public Member Functions
	CDiagramEditor (QWidget *parent=0)
	Constructor.
	~CDiagramEditor ()
	Destructor.
QString	chordName () const
QString	chordStrings () const
QString	chordFret () const
CChord::Instrument	chordInstrument () const
bool	isChordImportant () const
virtual QSize	sizeHint () const
CChord *	chord () const

---

Detailed Description

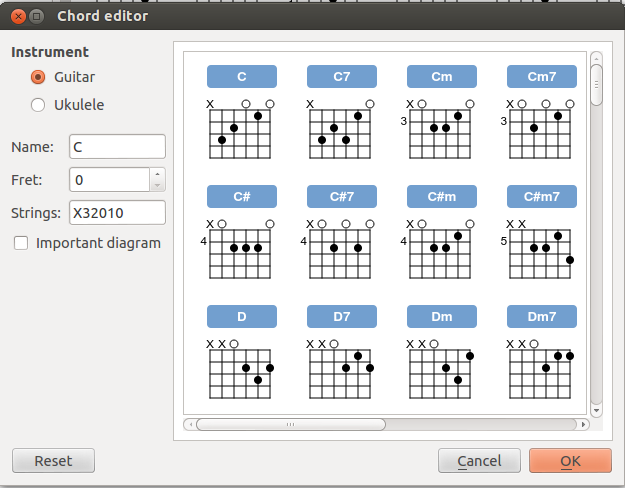

CDiagramEditor is a dialog for editing or creating chords.

The CDiagramEditor class provides a dialog widget for editing or creating chords. It is composed of a form where fields are the properties of a CChord object and of a list of common chords (a CDiagramArea object) that may be selected.

See also:

CChord, CDiagramArea

---

Member Function Documentation

CChord * CDiagramEditor::chord

(

)

const

Returns the CChord object associated with the dialog.

QString CDiagramEditor::chordFret

(

)

const

Returns the fret of the chord.

CChord::Instrument CDiagramEditor::chordInstrument

(

)

const

Returns the instrument of the chord.

QString CDiagramEditor::chordName

(

)

const

Returns the name of the chord.

QString CDiagramEditor::chordStrings

(

)

const

Returns the strings of the chord.

bool CDiagramEditor::isChordImportant

(

)

const

Returns the true if chord is important; false otherwise.

void CDiagramEditor::setChord ( CChord *  chord )

slot

Associates the CDiagram object diagram with dialog. The properties of diagram are used to fill the form of the dialog.

QSize CDiagramEditor::sizeHint ( ) const

virtual

Returns the preferred size for the dialog.

---

The documentation for this class was generated from the following files:

• src/diagram-editor.hh
• src/diagram-editor.cc
